The production of seamless steel pipes involves a precise transformation from solid steel billets to finished pipe products. This process mainly consists of two major routes: hot rolling and cold working. After a rigorous quality inspection, the pipes are ultimately delivered to our customers.
Step 1: From Steel Billet to Hollow Tube (Hot Rolling)
This is the core of seamless tube production, like "threading a needle," transforming a solid steel billet into a hollow tube.
- Raw Material Preparation and Heating: Production begins with carefully selected solid steel billets. These billets undergo rigorous composition and dimensional inspections before being fed into an annular heating furnace and heated to approximately 1200-1300℃, making them red-hot and pliable, preparing them for subsequent intense deformation.
- Piercing: The heated billet is rapidly fed to a piercing mill. Two inclined rollers inside the machine rotate and propel the billet forward, while a hard mandrel pierces it from the center, instantly forming a thick-walled, unevenly thick "capillary tube" (a hollow tube blank).
- Rolling and Sizing: The pierced capillary tube continues to be rolled and stretched through a series of mills (such as continuous rolling mills and sizing mills), making its wall thickness more uniform, significantly increasing its length, and ultimately achieving the finished outer diameter required by the customer. After this series of heat treatments, a preliminary "raw pipe" is born.
Step 2: Refined Finishing (Cold Working/Finishing)
For seamless tubes with higher dimensional accuracy, better surface quality, or extremely thin walls, the hot-rolled "raw tube" requires cold working, a precision process that needs to be repeated.
- Pickling and Lubrication: The surface of the hot-rolled steel tube will have a layer of oxide scale, which needs to be removed by pickling and then lubricated to prepare for cold working.
- Cold Drawing or Cold Rolling: By cold drawing (pulling the tube forcefully through a die smaller than its outer diameter) or cold rolling (repeatedly rolling in a precision rolling mill), the diameter and wall thickness of the tube are further reduced at room temperature, while significantly improving its dimensional accuracy and surface finish.
- Heat Treatment: Cold working makes the steel hard and brittle (work hardening). To restore its plasticity and internal structure properties, annealing or solution heat treatment is necessary.

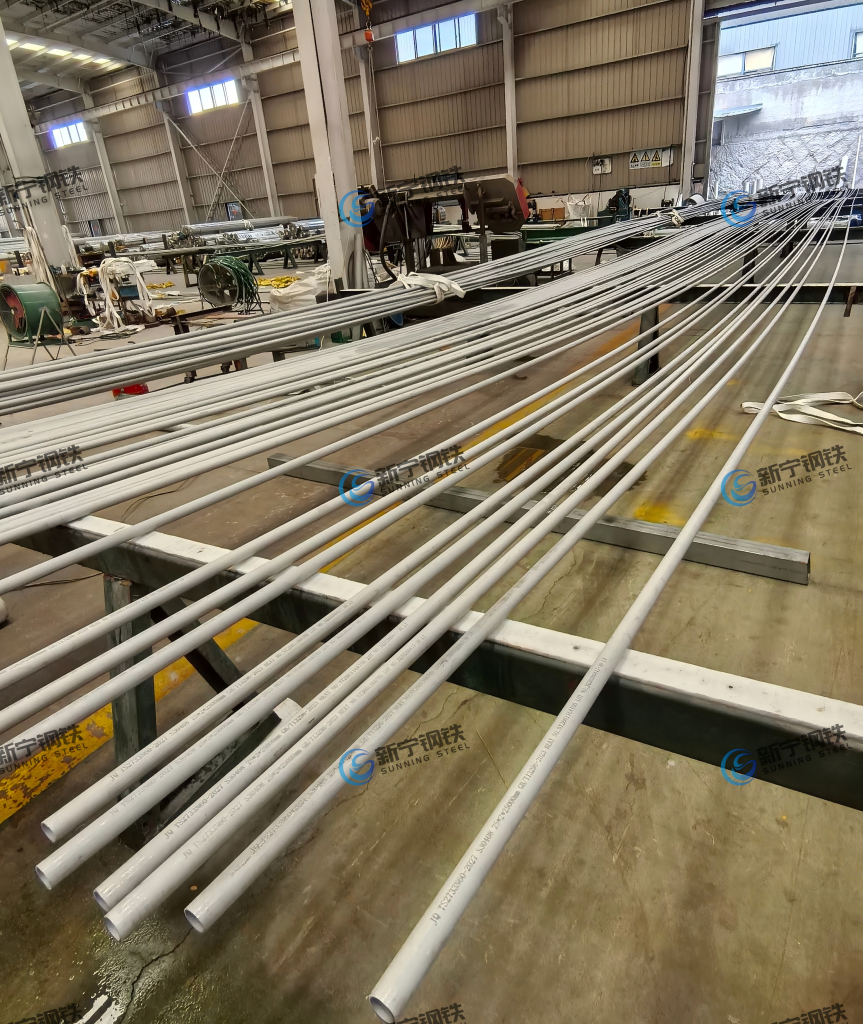

- Straightening: The heat-treated tube may be bent, requiring straightening with a straightening machine to achieve the required straightness.
One production characteristic is that the number of cycles for cold drawing and cold rolling is not fixed, but may be repeated 3-4 times, depending on the size requirements of the final product, with each cycle changing the properties of the tube.
Step 3: Comprehensive "Check-up" (Quality Control)
Quality is the lifeline of high-end seamless pipes, and multiple rigorous "check-ups" are interspersed throughout the entire production process.
- Non-destructive Testing: Before delivery, each pipe must undergo ultrasonic or eddy current testing to detect any internal cracks, delamination, or other minute defects.
- Pressure Testing: For pipelines transporting fluids, hydrostatic or pneumatic pressure tests are also required to verify their pressure resistance and sealing performance, leaving no hidden dangers.
- Dimensional and Performance Re-inspection: Dedicated inspectors will measure the outer diameter, wall thickness, ovality, and other dimensions of each pipe, and sample them for mechanical property testing (such as tensile and impact tests) and metallographic analysis to ensure that every indicator meets the standards.
Step 4: Labeling and Delivery
Labeling and Packaging: All qualified steel pipes will receive a unique "identity label" clearly indicating the steel grade, specifications, furnace batch number, and other information. Subsequently, they will be bundled, packaged, and even loaded into containers according to customer requirements, awaiting shipment.
