Explore SUNNING STEEL’s premium wrought cobalt-chromium-molybdenum (CoCr) alloy for implants. Ideal for surgery — metallic materials with high biocompatibility, strength, and corrosion resistance. ASTM F1537 / ISO 5832-12 compliant.
Cobalt-Chrome (CoCr) alloys, specifically wrought cobalt-chromium-molybdenum materials, are advanced metallic biomaterials engineered for use in orthopedic, spinal, and dental implants. Renowned for their exceptional biocompatibility, wear resistance, corrosion resistance, and high mechanical strength, CoCr alloys have become a gold standard for load-bearing implant components.
SUNNING STEEL supplies wrought Co-Cr-Mo alloys that meet the rigorous standards of the medical industry, conforming to specifications such as ASTM F1537, ISO 5832-12, and ISO 5832-4. Our CoCr products are suitable for machined, forged, and cast implant applications.
| Property | Details |
|---|---|
| Material Grade | CoCrMo (Wrought Cobalt-Chromium-Molybdenum) |
| Standards | ASTM F1537, ISO 5832-12, ISO 5832-4 |

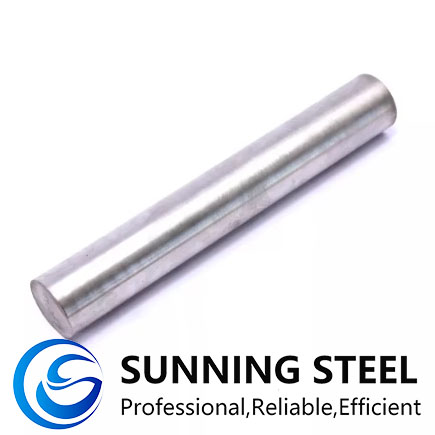

| Available Forms | Round Bar, Rod, Forged Block, Sheet, Disc |
| Processing Method | Hot Rolled / Forged / Annealed |
| Surface Finish | Bright, Ground, Polished |
| Property | Value |
|---|---|
| Tensile Strength | ≥ 1000 MPa |
| Yield Strength (0.2%) | ≥ 750 MPa |
| Elongation | ≥ 8% |
| Hardness (Rockwell C) | 25–35 HRC |
| Fatigue Strength | ≥ 400 MPa |
| Property | Value |
|---|---|
| Density | 8.3 – 9.2 g/cm³ |
| Melting Range | 1350 – 1455°C |
| Modulus of Elasticity | 210 – 240 GPa |
| Thermal Conductivity | ~14 W/m·K |
| Electrical Resistivity | ~0.95 μΩ·m |
| Magnetic Properties | Non-magnetic |
| Corrosion Resistance | Excellent in body fluids |
| Biocompatibility | ISO 10993 / ASTM tested |
A1: Cobalt-Chrome combines excellent biocompatibility, corrosion resistance, and high mechanical strength, making it ideal for load-bearing and long-term implant applications.
A2: Absolutely. Our CoCrMo alloy complies with ISO 5832-12 and ASTM F1537, making it suitable for use in regulated medical markets globally.
A3: Yes. In the annealed state, CoCr is non-magnetic, making it safe for use in MRI environments.
✅ Medical-Grade Quality Assurance – Compliant with ASTM/ISO surgical material standards
✅ Multiple Forms Available – Bar, rod, disc, and custom profiles
✅ Precision Machining & Processing Support
✅ Global Supply with Timely Delivery
✅ Experienced in Medical Materials Export
